Description

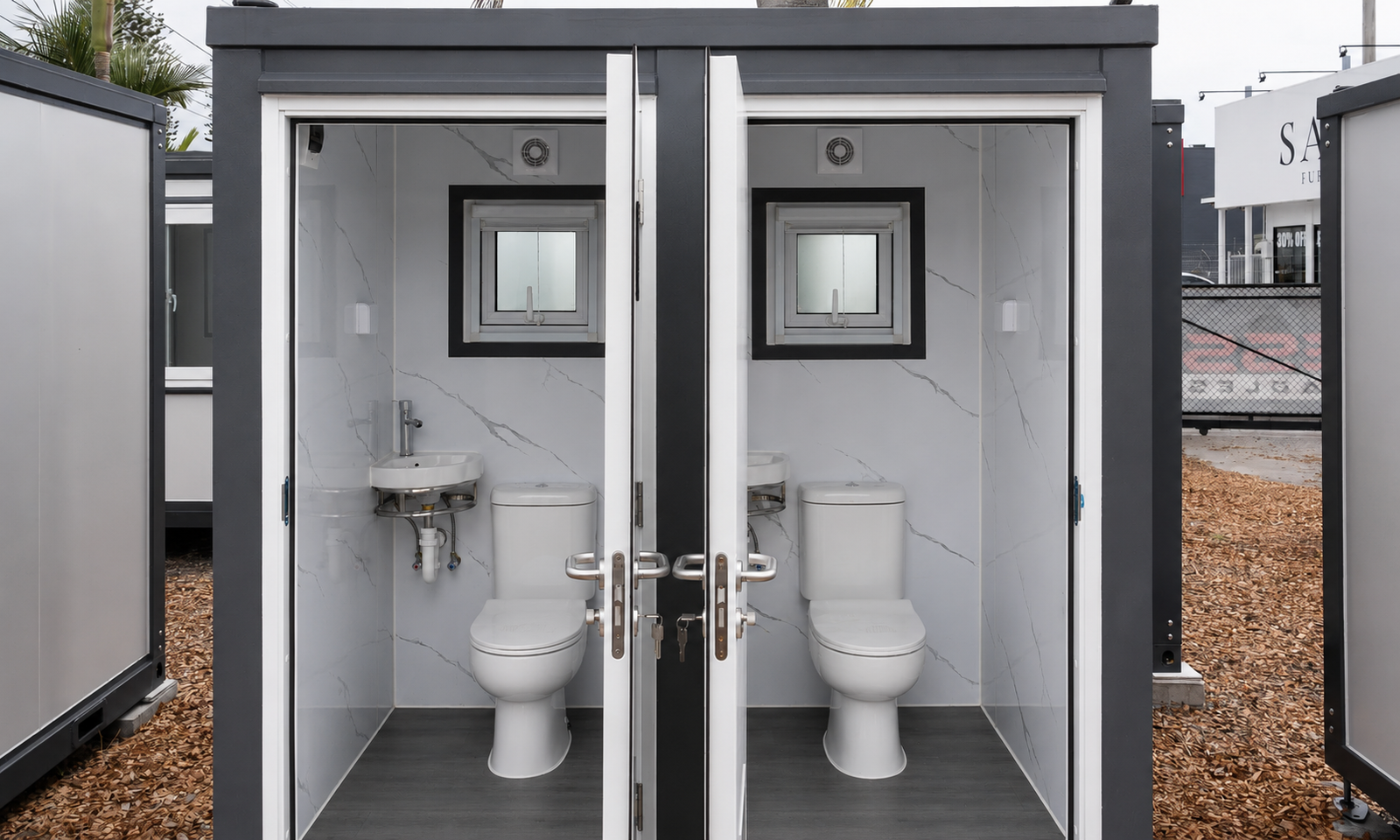

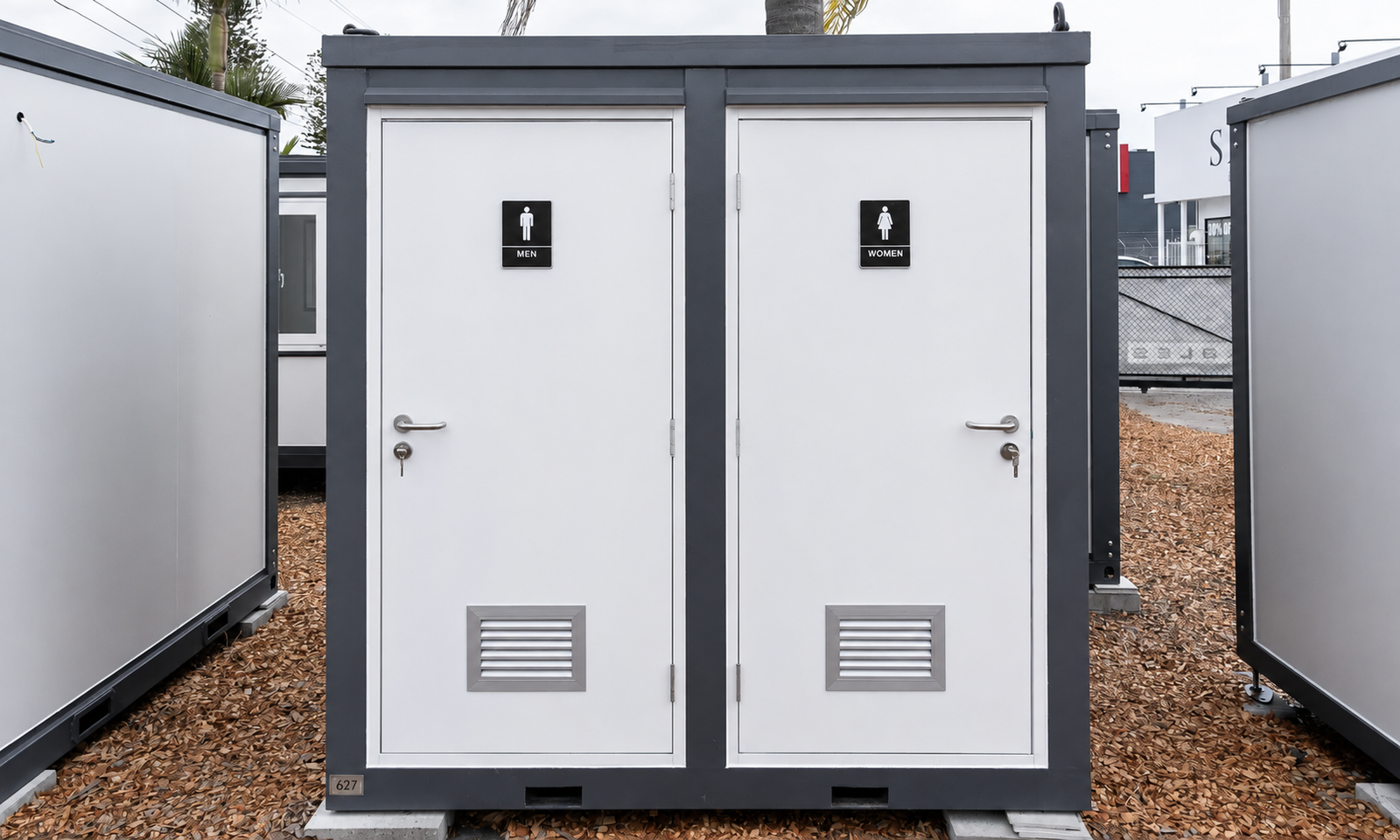

Mobile toilets Double Portable Toilet Block is a practical, hygienic, and durable bathroom solution for events, construction sites, commercial properties, remote locations, and temporary facilities.

Built with a strong gal vanished steel frame, 50mm EPS insulated panels, and 15mm exterior timber cladding, this portable toilet block is designed for durability, insulation, and year-round use. It can be connected to mains water, sewer, and electrical services, or operated independently with a suitable waste tank system.

Key Features

• Two Toilets – Two separate toilet areas.

• 50mm EPS Insulation – Insulated walls and roof.

• Steel Frame – Durable galvanised steel construction.

• Porcelain Vanities – Chrome mixer taps included.

• Double Glazing – Ventilation with flyscreen protection.

• Pre-Installed Plumbing – Water, waste, and sewer connections.

• LED Lighting – Pre-wired LED downlights.

• Easy Transport – Crane lugs, forklift pockets, and tie-down cleats. (750kg)

Bathroom Facilities

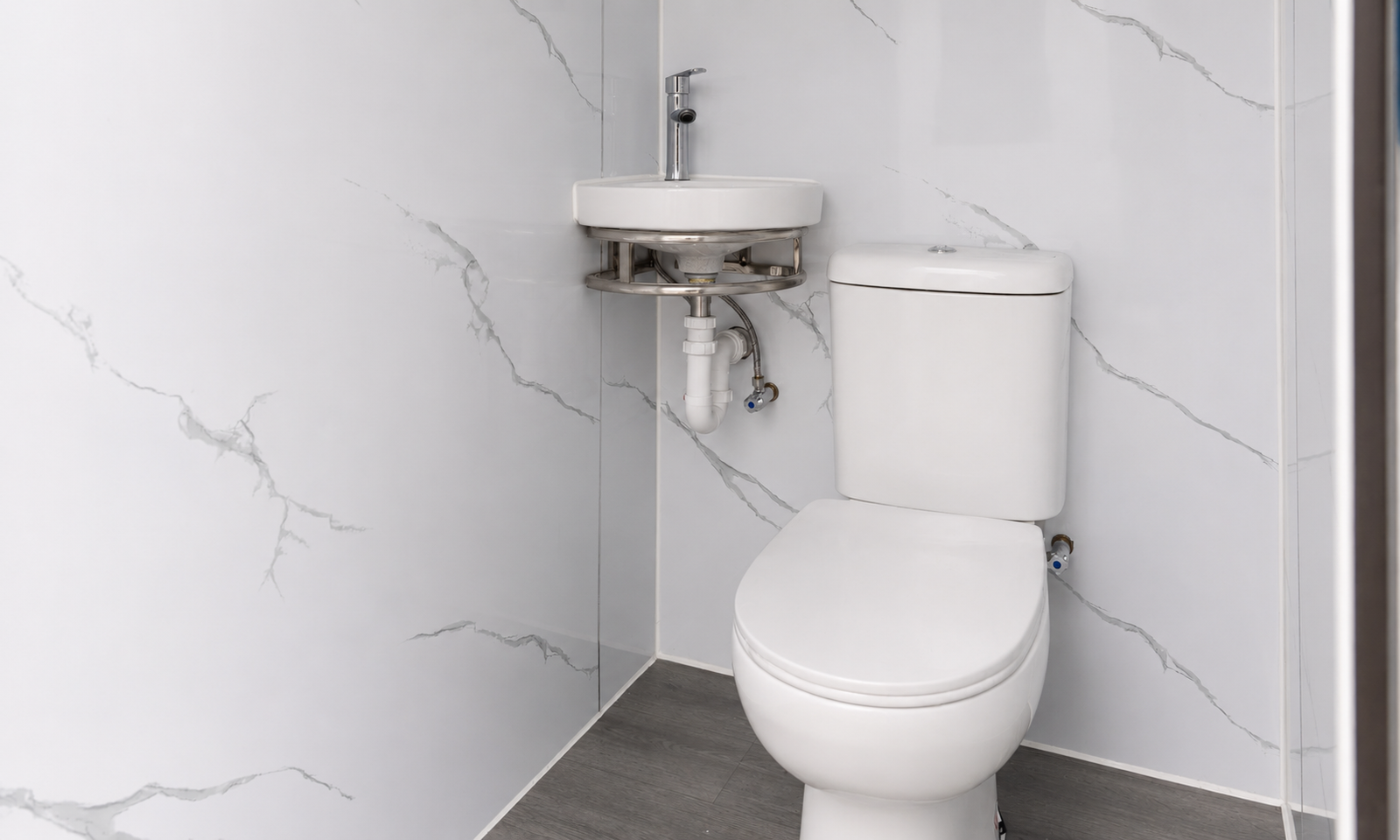

Each toilet compartment is designed for practical and comfortable everyday use and includes:

• Modern compact toilet
• Soft-close toilet seat
• Porcelain vanity

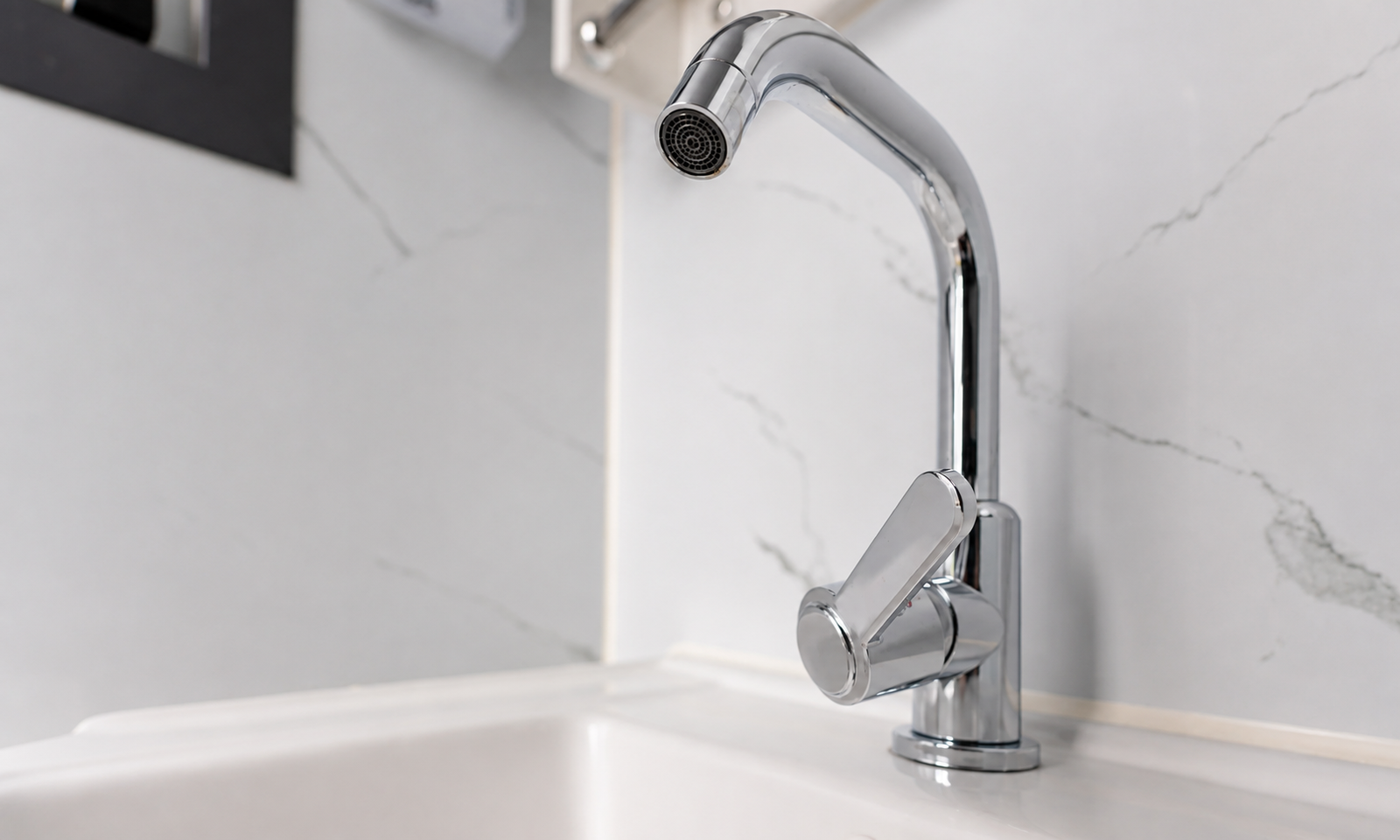

• Chrome mixer tap

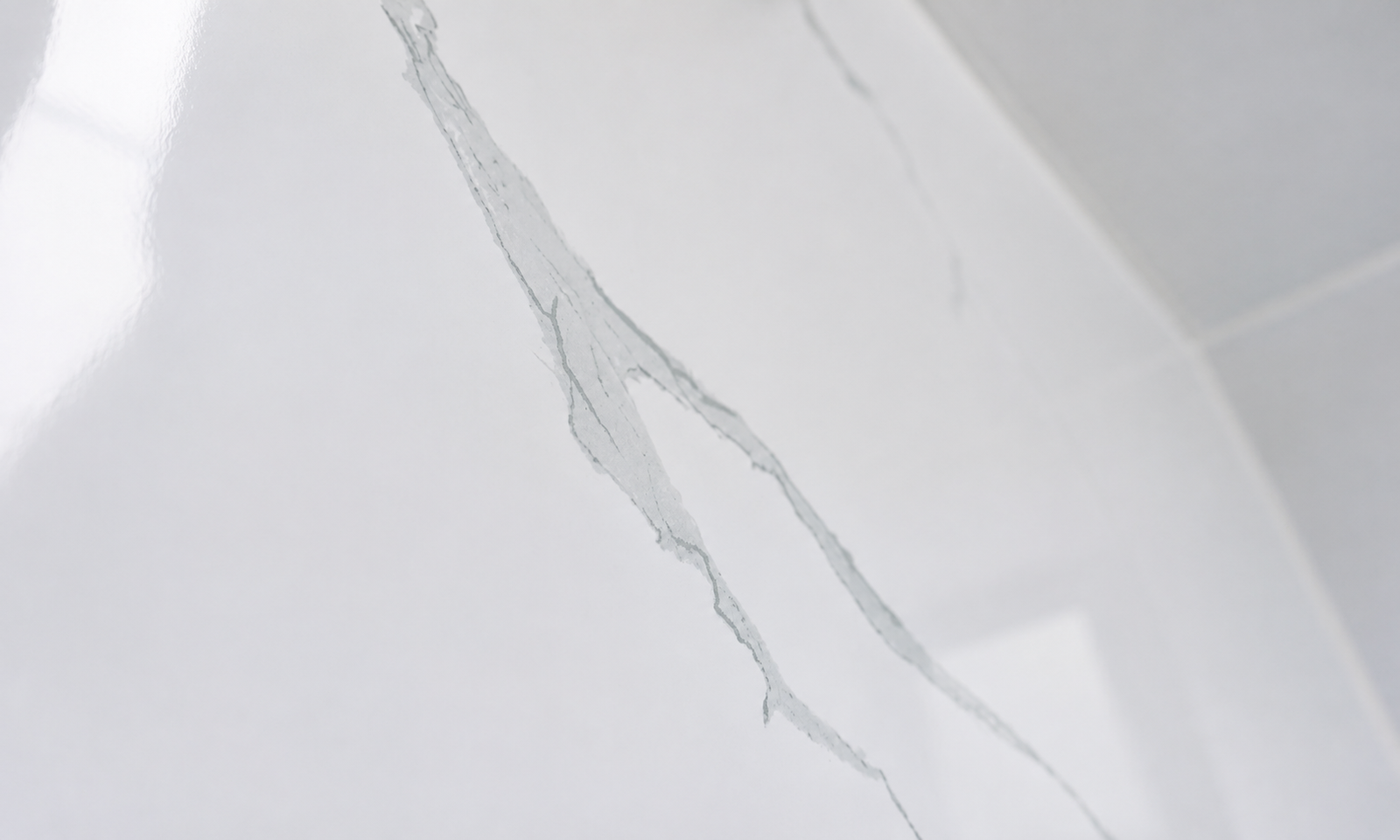

• Marble-look wall finish
• PVC cornice and skirting

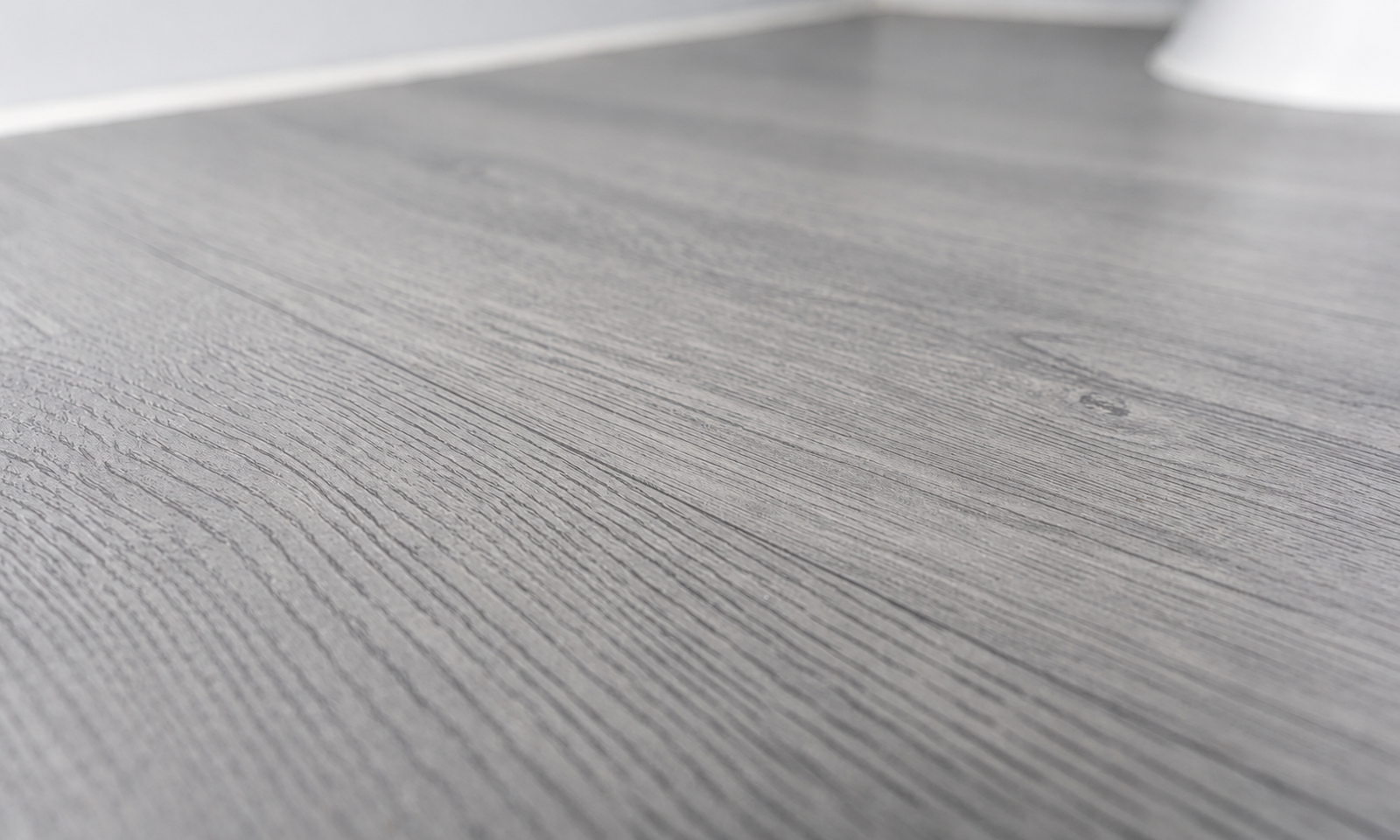

• 2mm timber-look vinyl flooring

The fixtures and fittings comply with applicable WELS WaterMark and AS/NZS 6400:2016 requirements where specified.

Construction & Insulation

The double portable toilet block is manufactured using durable materials designed for long-term performance.

• Galvanised steel structural frame
• Epoxy-treated and acrylic-painted frame
• 50mm EPS insulated wall panels
• 50mm EPS interior roof panels

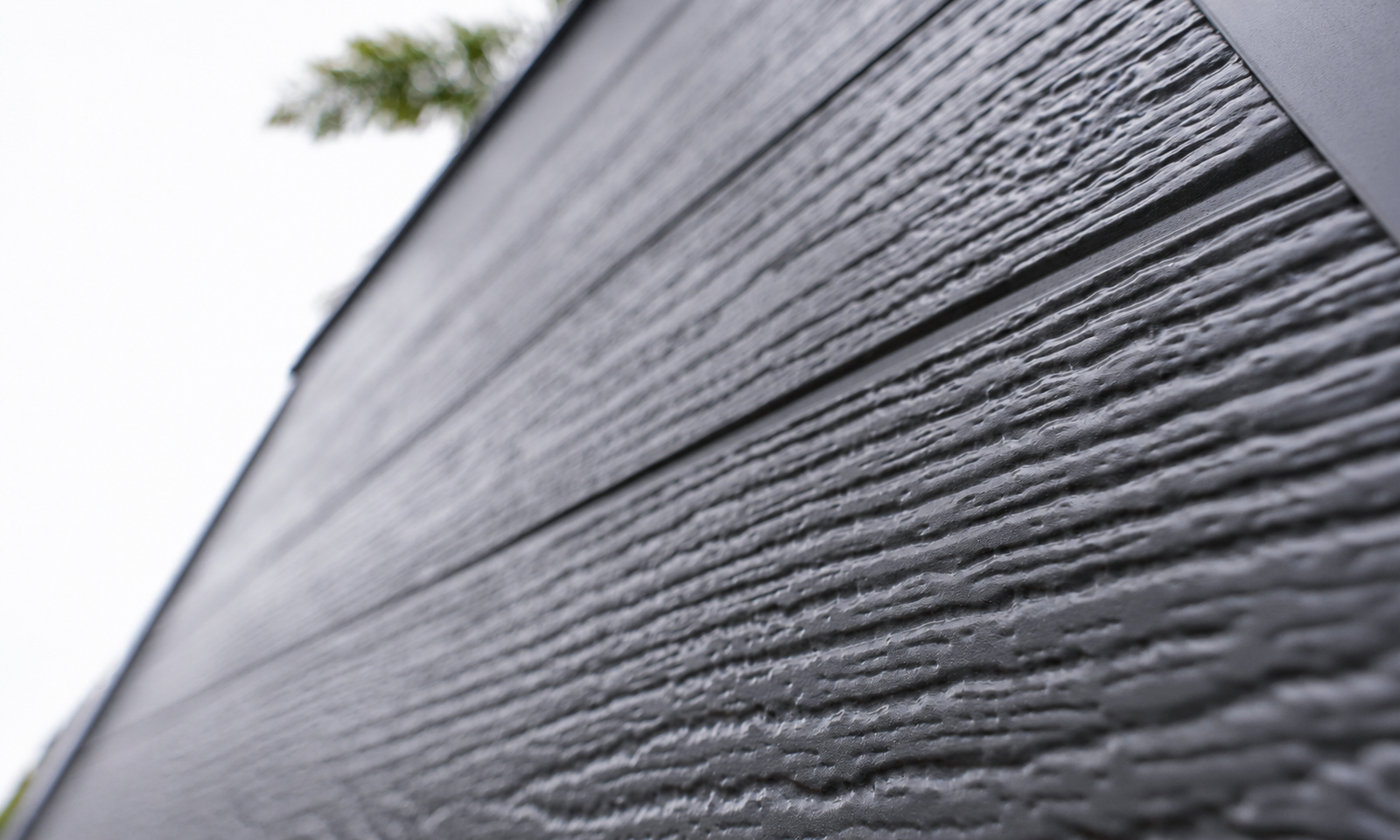

• 15mm exterior timber cladding
• 3mm steel exterior roof sheet
• Dark grey epoxy-painted roof finish
• Magnesium composite subfloor
• Water-, rot-, and insect-resistant flooring

Windows & Ventilation

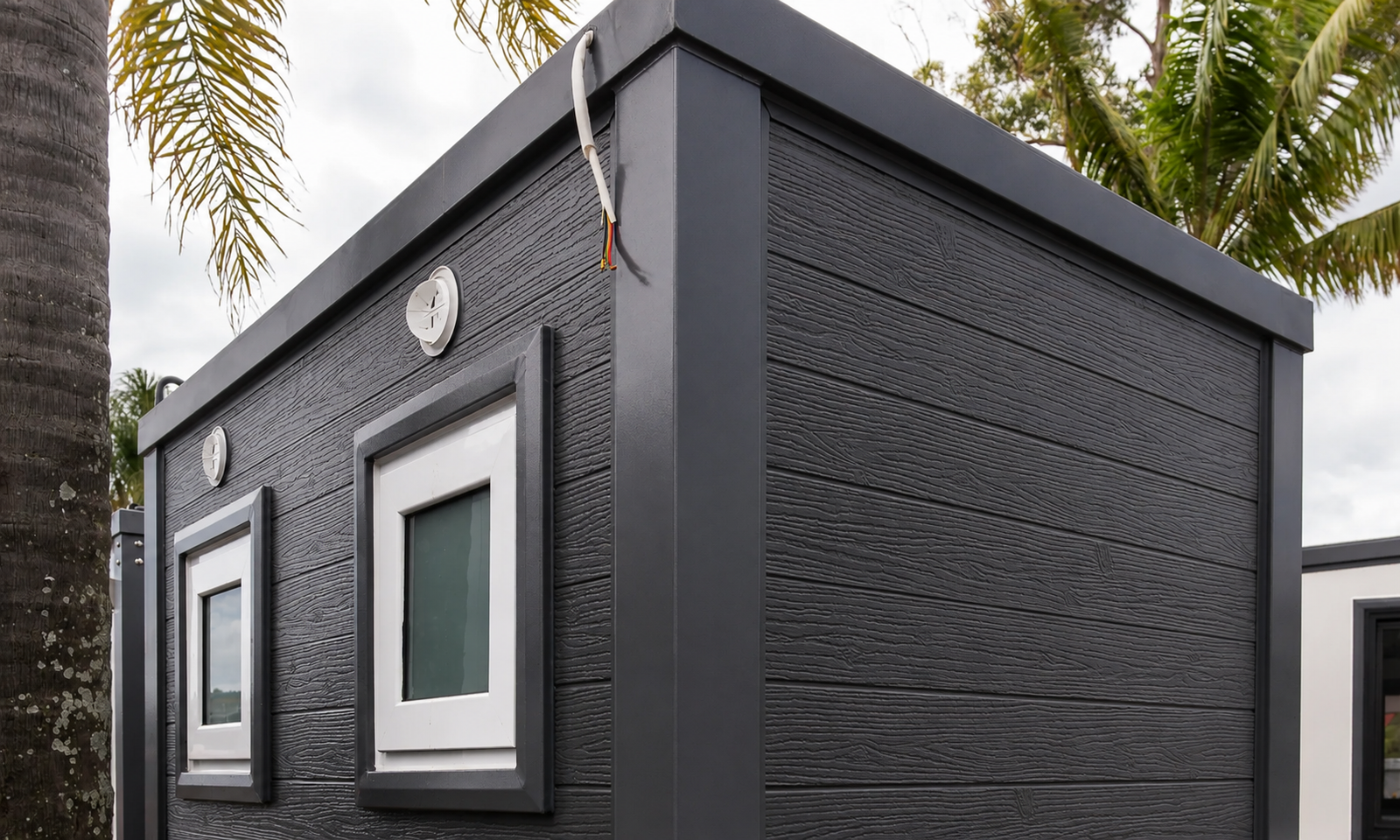

The unit features a double-glazed awning window positioned on the rear wall to provide natural ventilation and light.

• Aluminium-framed window
• Double glazing
• 5mm glass
• Pull-down flyscreen
• Awning-style ventilation

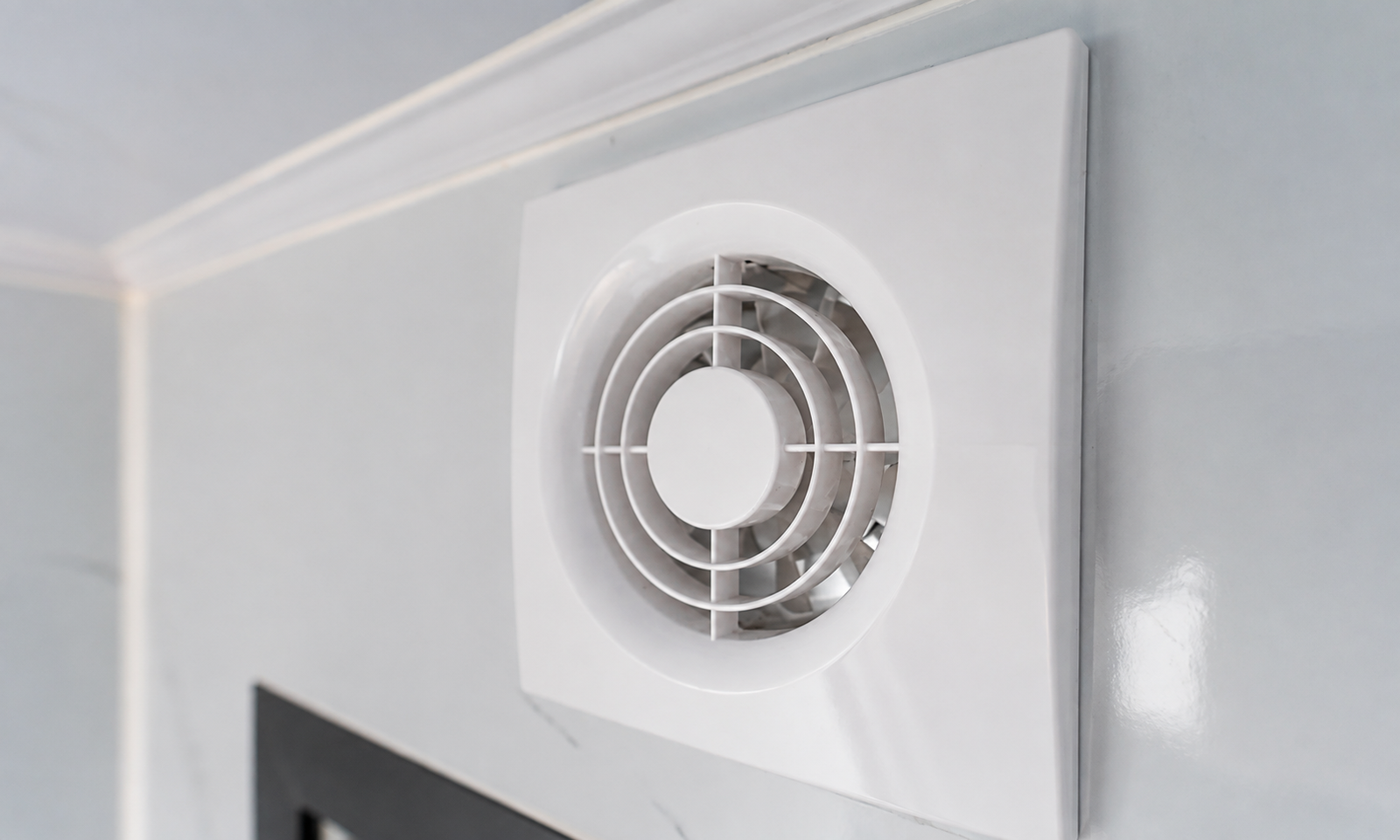

An exhaust fan helps improve airflow and maintain a fresh, comfortable bathroom environment.

Electrical System

The building includes a pre-wired electrical system for convenient installation.

• LED downlights
• Pre-installed electrical wiring
• Mains electrical cable terminated at the rear wall
• Australian Standard electrical products
• RCM-certified electrical components
• AS/NZS 3000 electrical compliance

A qualified electrician must complete the required hardwired electrical connection, final fit-off, testing, and commissioning.

Plumbing System

The plumbing system is prepared for easy connection to existing services.

• Pre-installed hot and cold water lines
• Water connections through the wall

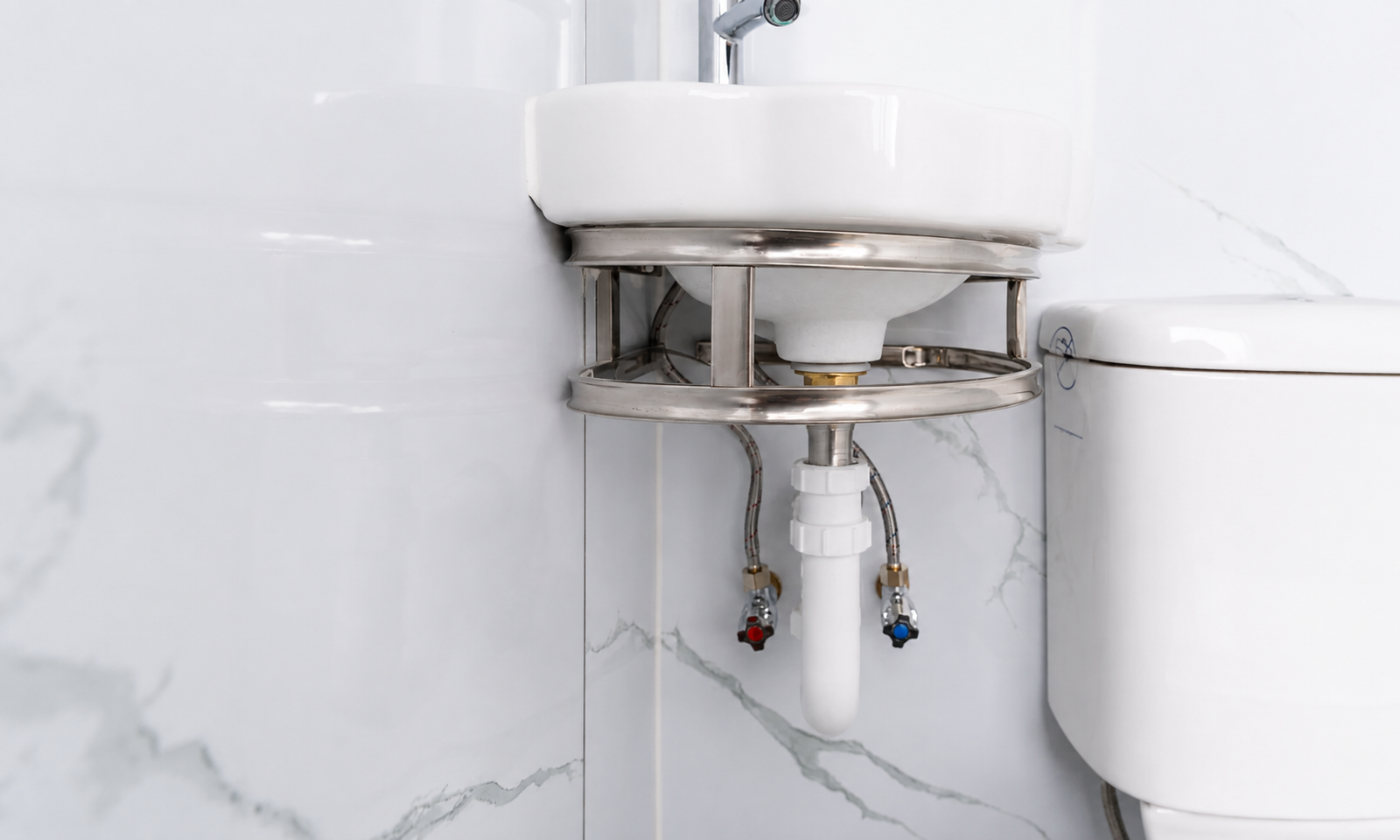

• 42mm pre-plumbed vanity waste connection

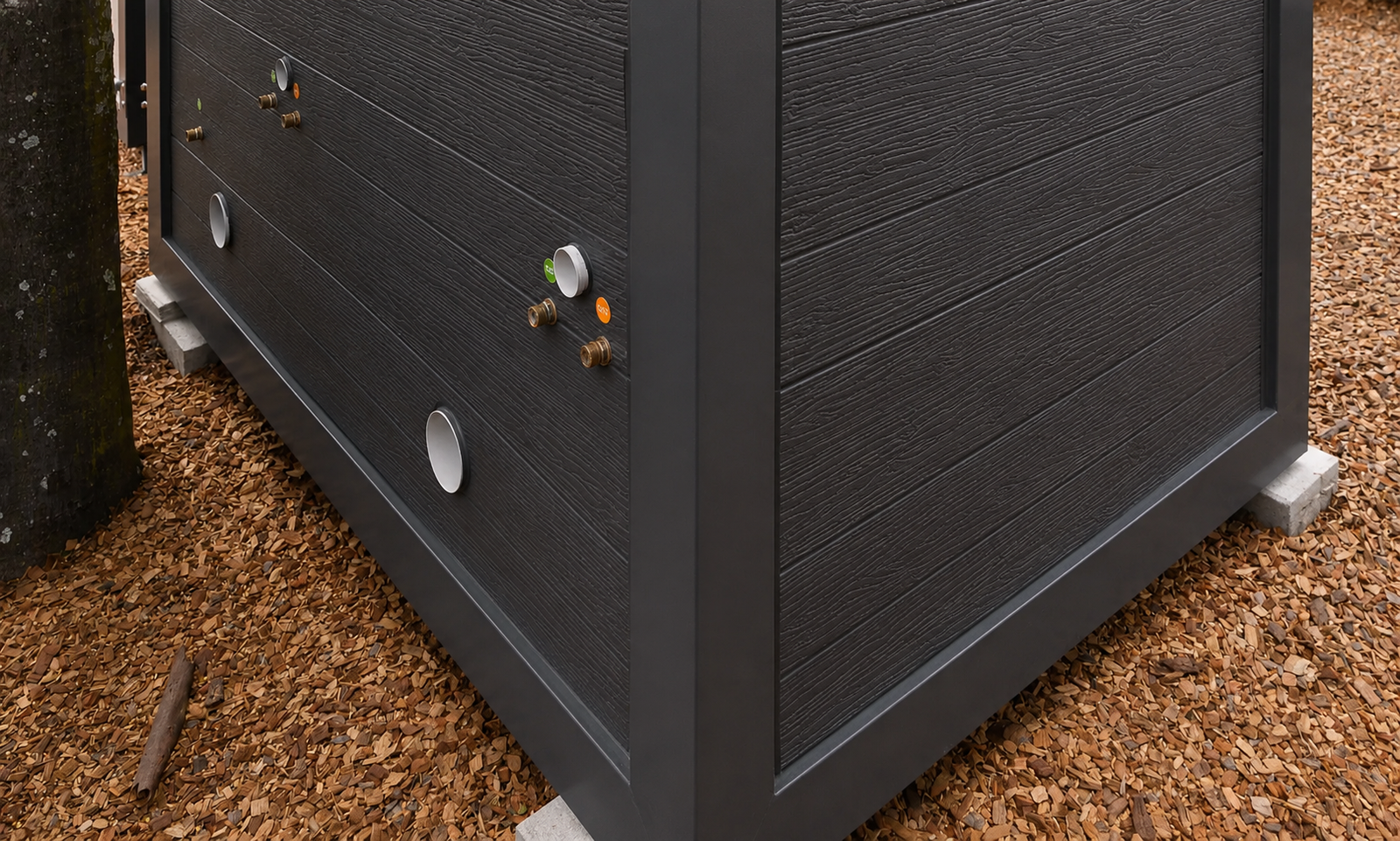

• Sewer connection through the rear wall
• Suitable for mains water and sewer
• Can operate with a suitable waste tank system

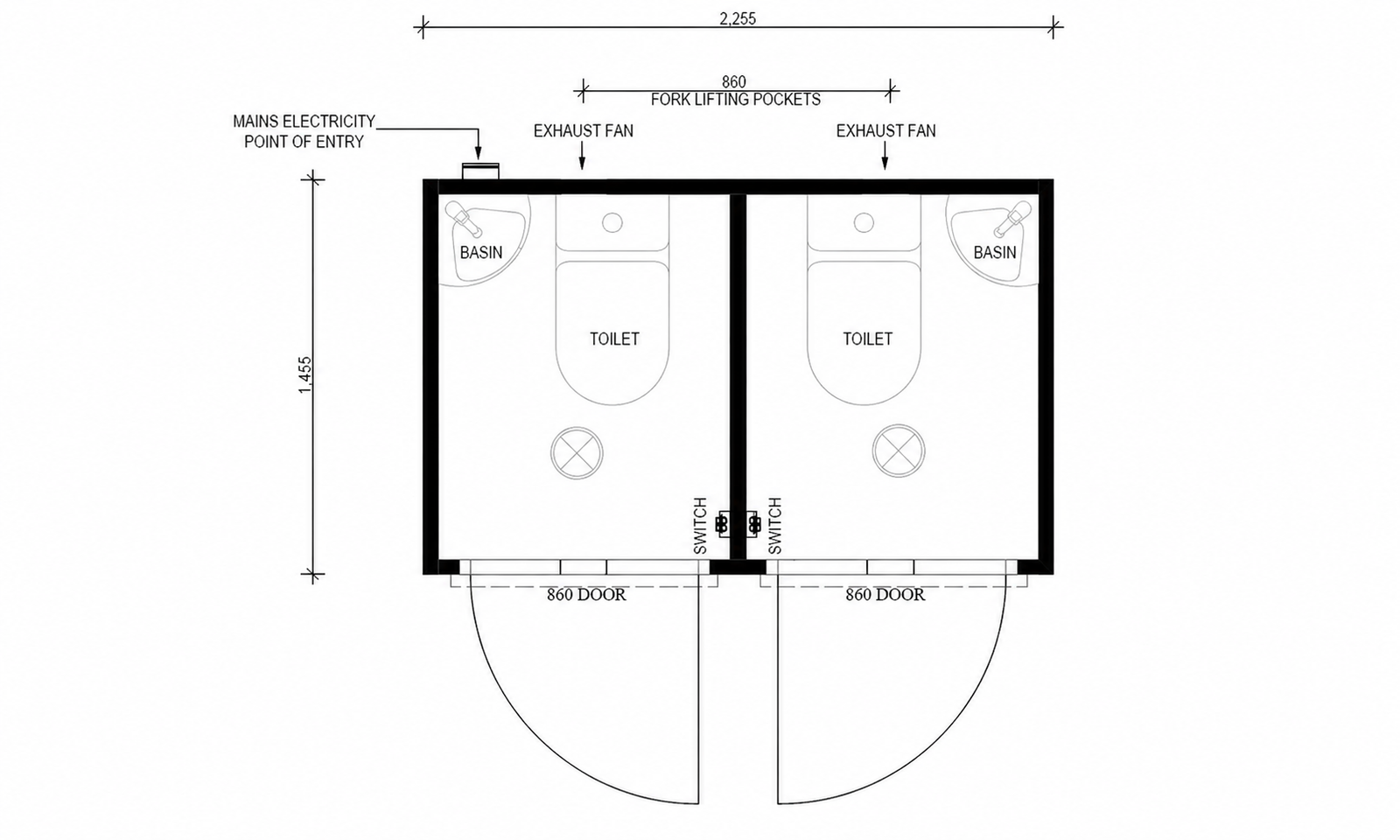

Dimensions

• Length: 2.26m
• Width: 1.46m
• Height: 2.3m
• Weight: Approx. 1,653 lb
